MADE IN TAIWAN、PROFESSIONAL TECHNIQUE
活塞環

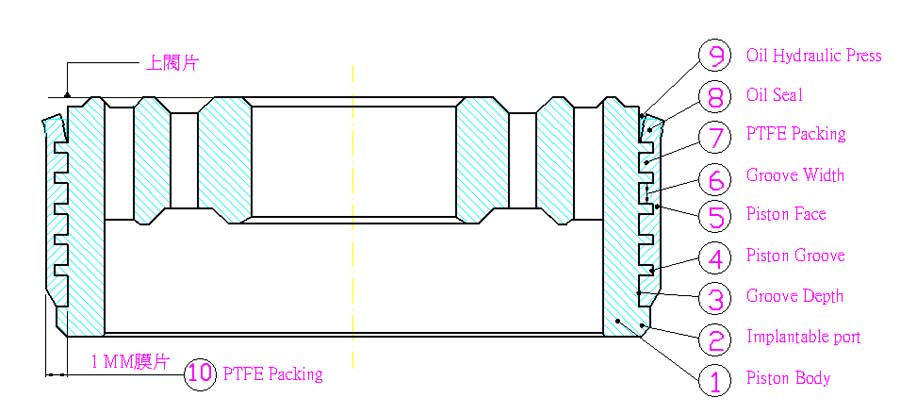

Shock Absorber Piston〜The Latest cladded machine

一 Piston Body： Piston Body is made with international standard, and strengthened using precision machine pressurization. It did not rely on heat treatment and secondary processing to improve surface hardness.
二 Implantable port： 1.5mm Width and 1mm Depth in spec.In addition, to prevent the “hitting the pole wall” under pressure when installing shock absorber diagonally,implantable port can come with 1mm width specification
三 Groove Depth： Groove has a 0.65mm depth. When inserting PTFE into groove vertically, it strengthens piston ring so it does not cause rotation and shedding under 60℃
四 Piston Groove： Groove has a 0.5mm width design to reduce metal contact surface area his helps reduce friction coefficient, edge hardening due to long use, and cladding PTFE packing loosening due to rotation.
五 Piston Face： Original 0.2mm piston surface will tear, break, or brittle after long use The newest generation cladding machine forming process with specially made 1mm PTFE packing ensures PTFE to gain chaining hardness and elasticity on 0.4mm piston surface
六 Groove Width： The Groove has 1.0mm width and 0.65mm height in design Our design enable special PTFE packing to create super tie elastic bond when inserted into the metal wall. This prevents PTFE packing grinding problem.
七 PTFE Packing：
  1. A better pipe production method is double sided pressurized forming instead of plate punching The raw materials are repeatedly heated and cool down for five days before any processing.。
  2. he worst processing method for the PTFE of Piston is the lather process because its’ PTFE surface will break under 500-1000 spin speed Because of this, a good shock absorber grinding ring will form oil dirt deposit and makes the absorber harden over time.
  3. Factory form PTFE packing is made with high temperature cladding method with super cold processing The advantage of this method is fast production time but cause flaking, breaking and loosening problem over time
  4. PTFE packing for car modification is created without high temperature and fast cooling hardening processing method so it gets to retain its elasticity, grinding endurance, extensibility, and tie-seal properties.
八 Oil Seal：
  1. Oil seal is designed with PU oil seal usage in mind. Padding is inserted with cold pressure which creates PTFE that act as oil seal This effectively reduces grinding, leaking, groove roughness, heat exhaustion, noise, and other oil seal related issue due to high pressure  It also increase shock absorber’s life span
  2. PTEF packing for car modification is slow to produce and has limited production quota per year. However, it is very resistance to grinding and hard to break down We do not recommend factory that provides piston repair service to use this because if they install this they will have nothing to repair later on
  3. Due to difference in usage environment and design concept. We can adapt to any PTFE packing material and any piston shape We can create diameter range from 25 mm to 152 mm
九 Oil Hydraulic Press： When gas oil pour into the oil hydraulic press under high pressure and heat, causes oil seal to expend and press against the pole wall This reduces piston body’s surface tearing. Oil seal has maximum extend length of 0.5mm to 1mm
十 PTFE Packing： Our PTFE Packing is made with proprietary advance processing method that brings benefit such as Piston PTFE OD, uto grinding damage repair due to piston movement, tie-bond with groove wall and unlimited grinding endurance. Trial testing our product is welcome.
回順發首頁 避震器活塞環所有型號一律4折,量大或長期採購可洽營業部小林小姐
活塞環 Item Number：25B01 原廠用 OD 25ψ＋0.02－0 ID 8ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 400/Carton (EXW)
Payment： 15% Graphite 100/NT
Graphite+Glass Fibre 100/NT
Mos2+ Glass Fibre 100/NT
15% Carbon 115/NT
30% Phosphor Bronze 130/NT
TFM 170/NT
活塞環 Item Number：28B01 原廠用 OD 28ψ＋0.02－0 ID 10ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 120/NT
Graphite+Glass Fibre 120/NT
Mos2+ Glass Fibre 120/NT
15% Carbon 135/NT
30% Phosphor Bronze 160/NT
TFM 210/NT
活塞環 Item Number：30A01 改裝用 OD 30ψ＋0.02－0 ID 10ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 400/Carton (EXW)
Payment： 15% Graphite 160/NT
Graphite+Glass Fibre 160/NT
Mos2+ Glass Fibre 160/NT
15% Carbon 185/NT
30% Phosphor Bronze 210/NT
TFM 270/NT
活塞環 Item Number：30B01 原廠用 OD 30ψ＋0.02－0 ID 8ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 400/Carton (EXW)
Payment： 15% Graphite 120/NT
Graphite+Glass Fibre 120/NT
Mos2+ Glass Fibre 120/NT
15% Carbon 135/NT
30% Phosphor Bronze 160/NT
TFM 210/NT
活塞環 Item Number：30B02 原廠用 OD 30ψ＋0.02－0 ID 8ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 120/NT
Graphite+Glass Fibre 120/NT
Mos2+ Glass Fibre 120/NT
15% Carbon 135/NT
30% Phosphor Bronze 160/NT
TFM 210/NT
活塞環 Item Number：30B03 原廠用 OD 30ψ＋0.02－0 ID 10ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 120/NT
Graphite+Glass Fibre 120/NT
Mos2+ Glass Fibre 120/NT
15% Carbon 135/NT
30% Phosphor Bronze 160/NT
TFM 210/NT
活塞環 Item Number：32B01 原廠用 OD 32ψ＋0.02－0 ID 10ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 400/Carton (EXW)
Payment： 15% Graphite 170/NT
Graphite+Glass Fibre 170/NT
Mos2+ Glass Fibre 170/NT
15% Carbon 195/NT
30% Phosphor Bronze 220/NT
TFM 290/NT
活塞環 Item Number：32B02 原廠用 OD 32ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 190/NT
Graphite+Glass Fibre 190/NT
Mos2+ Glass Fibre 190/NT
15% Carbon 220/NT
30% Phosphor Bronze 250/NT
TFM 330/NT
活塞環 Item Number：33B01 原廠用 OD 33ψ＋0.02－0 ID 10ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 200/NT
Graphite+Glass Fibre 200/NT
Mos2+ Glass Fibre 200/NT
15% Carbon 230/NT
30% Phosphor Bronze 260/NT
TFM 340/NT
活塞環 Item Number：33B02 原廠用 OD 33ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 220/NT
Graphite+Glass Fibre 220/NT
Mos2+ Glass Fibre 220/NT
15% Carbon 230/NT
30% Phosphor Bronze 290/NT
TFM 380/NT
活塞環 Item Number：34B01 原廠用 OD 34ψ＋0.02－0 ID 10ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 200/NT
Graphite+Glass Fibre 200/NT
Mos2+ Glass Fibre 200/NT
15% Carbon 230/NT
30% Phosphor Bronze 260/NT
TFM 340/NT
活塞環 Item Number：34B02 原廠用 OD 34ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 230/NT
Graphite+Glass Fibre 230/NT
Mos2+ Glass Fibre 230/NT
15% Carbon 255/NT
30% Phosphor Bronze 300/NT
TFM 390/NT
活塞環 Item Number：35A01 改裝用 OD 35ψ＋0.02－0 ID 10ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 400/Carton (EXW)
Payment： 15% Graphite 300/NT
Graphite+Glass Fibre 300/NT
Mos2+ Glass Fibre 300/NT
15% Carbon 330/NT
30% Phosphor Bronze 390/NT
TFM 510/NT
活塞環 Item Number：35A02 改裝用 OD 35ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 400/Carton (EXW)
Payment： 15% Graphite 220/NT
Graphite+Glass Fibre 220/NT
Mos2+ Glass Fibre 220/NT
15% Carbon 245/NT
30% Phosphor Bronze 300/NT
TFM 400/NT
活塞環 Item Number：35B01 原廠用 OD 35ψ＋0.02－0 ID 10ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 400/Carton (EXW)
Payment： 15% Graphite 200/NT
Graphite+Glass Fibre 200/NT
Mos2+ Glass Fibre 200/NT
15% Carbon 230/NT
30% Phosphor Bronze 260/NT
TFM 340/NT
活塞環 Item Number：35B02 原廠用 OD 35ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.5up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 230/NT
Graphite+Glass Fibre 230/NT
Mos2+ Glass Fibre 230/NT
15% Carbon 260/NT
30% Phosphor Bronze 300/NT
TFM 400/NT
>
活塞環 Item Number：36A01 改裝用 OD 36ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 360/Carton (EXW)
Payment： 15% Graphite 220/NT
Graphite+Glass Fibre 220/NT
Mos2+ Glass Fibre 220/NT
15% Carbon 260/NT
30% Phosphor Bronze 300/NT
TFM 400/NT
活塞環 Item Number：36A02 改裝用 OD 36ψ＋0.02－0 ID 10ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 300/NT
Graphite+Glass Fibre 300/NT
Mos2+ Glass Fibre 300/NT
15% Carbon 330/NT
30% Phosphor Bronze 390/NT
TFM 510/NT
活塞環 Item Number：38A01 改裝用 OD 38ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 250/NT
Graphite+Glass Fibre 250/NT
Mos2+ Glass Fibre 250/NT
15% Carbon 280/NT
30% Phosphor Bronze 330/NT
TFM 430/NT
活塞環 Item Number：38A02 改裝用 OD 38ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 250/NT
Graphite+Glass Fibre 250/NT
Mos2+ Glass Fibre 250/NT
15% Carbon 280/NT
30% Phosphor Bronze 330/NT
TFM 430/NT
活塞環 Item Number：40A01 改裝用 OD 40ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 250/NT
Graphite+Glass Fibre 250/NT
Mos2+ Glass Fibre 250/NT
15% Carbon 280/NT
30% Phosphor Bronze 330/NT
TFM 430/NT
活塞環 Item Number：40A02 改裝用 OD 25ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite 250/台幣
Graphite+Glass Fibre 250/NT
Mos2+ Glass Fibre 250/NT
15% Carbon 280/NT
30% Phosphor Bronze 330/NT
TFM 430/NT
活塞環 Item Number：44A01 改裝用 OD 44ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 280/Carton (EXW)
Payment： 15% Graphite 280/NT
Graphite+Glass Fibre 280/NT
Mos2+ Glass Fibre 280/NT
15% Carbon 325/NT
30% Phosphor Bronze 370/NT
TFM 470/NT
活塞環 Item Number：44A02 改裝用 OD 44ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 280/Carton (EXW)
Payment： 15% Graphite 280/NT
Graphite+Glass Fibre 280/NT
Mos2+ Glass Fibre 280/NT
15% Carbon 325/NT
30% Phosphor Bronze 370/NT
TFM 470/NT
活塞環 Item Number：45A01 改裝用 OD 45ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 280/Carton (EXW)
Payment： 15% Graphite 340/NT
Graphite+Glass Fibre 340/NT
Mos2+ Glass Fibre 340/NT
15% Carbon 390/NT
30% Phosphor Bronze 440/NT
TFM 550/NT
活塞環 Item Number：45A02 改裝用 OD 45ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 280/Carton (EXW)
Payment： 15% Graphite 340/NT
Graphite+Glass Fibre 340/NT
Mos2+ Glass Fibre 340/NT
15% Carbon 400/NT
30% Phosphor Bronze 440/NT
TFM 550/NT
活塞環 Item Number：46A01 改裝用 OD 46ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 280/Carton (EXW)
Payment： 15% Graphite 400/NT
Graphite+Glass Fibre 400/NT
Mos2+ Glass Fibre 400/NT
15% Carbon 460/NT
30% Phosphor Bronze 510/NT
TFM 630/NT
活塞環 Item Number：46A02 改裝用 OD 46ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： 280/Carton (EXW)
Payment： 15% Graphite 400/NT
Graphite+Glass Fibre 400/NT
Mos2+ Glass Fibre 400/NT
15% Carbon 460/NT
30% Phosphor Bronze 510/NT
TFM 630/NT
活塞環 Item Number：50A01 改裝用 OD 50ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite /NT
Graphite+Glass Fibre /NT
Mos2+ Glass Fibre /NT
15% Carbon /NT
30% Phosphor Bronze /NT
TFM /NT
活塞環 Item Number：50A02 改裝用 OD 50ψ＋0.02－0 ID 12ψ＋0〜0.05
Product： Gasification、Lapping、Density:6.7up
Description： 1mmPTFE Packing、Groove Depth 0.7m/m、Oil Seal0.1〜0.3m/m
Packing： Min order Quantity: 3000(EXW)
Payment： 15% Graphite /NT
Graphite+Glass Fibre /NT
Mos2+ Glass Fibre /NT
15% Carbon /NT
30% Phosphor Bronze /NT
TFM /NT
